NAW Series

Waterproof equivalent to IP-67
RoHS
Quick lock
Safety standard certified products available

Metallic type of quick lock waterpoorf connectors.
Robust assured by employment of a metallic shell.
Suitable for use in civil engineering ＆ construction machines and other various types of machinery.

Feature

RoHS	RoHS Directive compliant
Waterproof	Waterproof connector【Waterproof function equivalent to IP-67 when coupled】
Lock method	Quick lock
Features of mechanism/material	・Die cast shell with zinc alloy. ・Smoothe coupling thanks to empolyment of 5-key system guide. ・Installation in a small space enabled by use of the L za.
Standards	・UL・CSA standard certified connectors available. （UL：UL1977 CSA：C22.2 No.182.3 ）・< CSA NRTL/C > standard certified connectors available. （UL：UL1977 CSA：C22.2 No.182.3 ）
Cable termination	Soldering

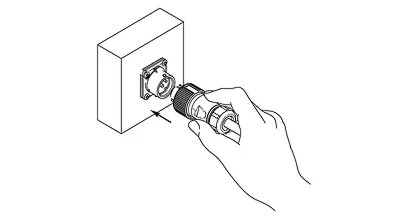

Insertion

Align the plug and the guide of the mating connector
( receptacle/adapter ) and push in straight until it clicks in place.
Caution: When inserting, do not turn the lock nut.

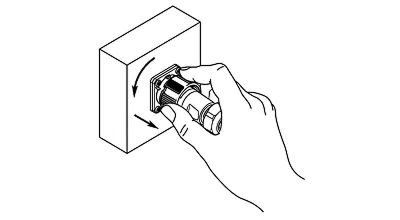

Extraction

Extract the connector with the lock nut turned in the arrow direction 30 degrees CCW for Size 16 and 45 degrees CCW for Sizes 20 & 24.
Caution: When extracting, do not turn the end bell.

Material and Finish

	Material	Finishx
Shell	Zinc alloy (Partially aluminum alloy)	Special treatment
Insulator	Synthetic resin	―
Contact	Copper alloy	Silver plating Gold plating
Packing	Synthetic rubber	―
